Product
조명
| 모델명 | 제조사 | Type | 전용 모델 | Rate Input | Power | Serial | Manual | LAN | Display | Illuminance Control | Number of Channel | Intensity Step | 다운로드 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

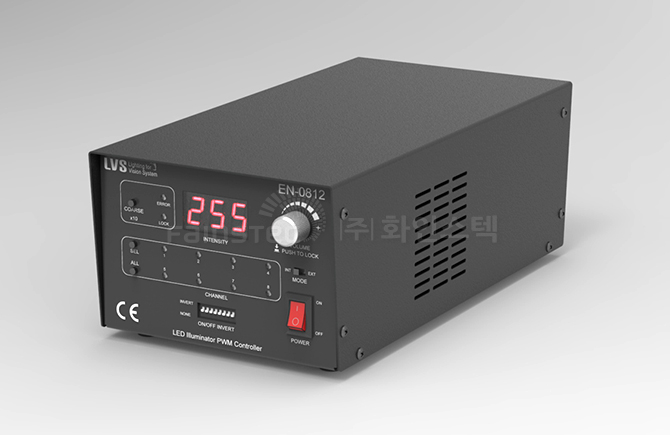

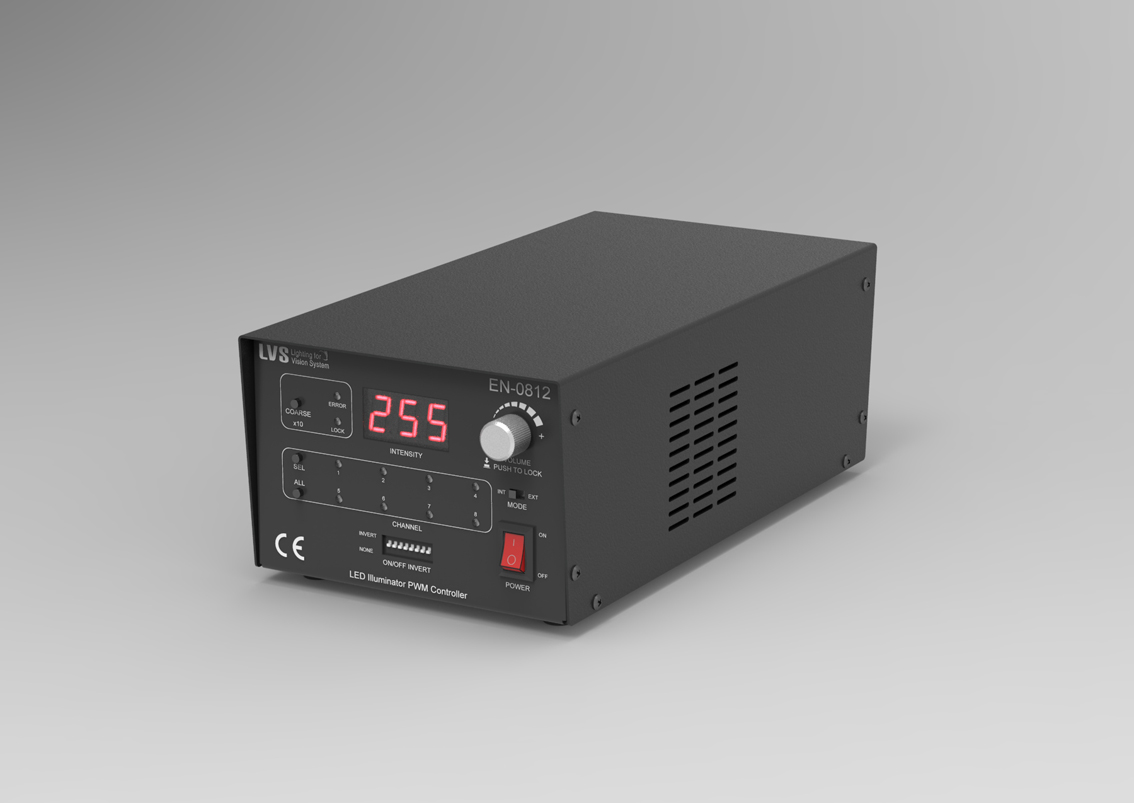

LVS | - | en-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 2 | 0-255 | |
|
LVS | - | en-series | AC100V - 240V 50/60Hz | 12V | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 4 | 0-255 | |
|
LVS | - | en-series | AC100V - 240V 50/60Hz | 12V | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 4 | 0-255 | |
|
LVS | - | en-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 8 | 0-255 | |
|

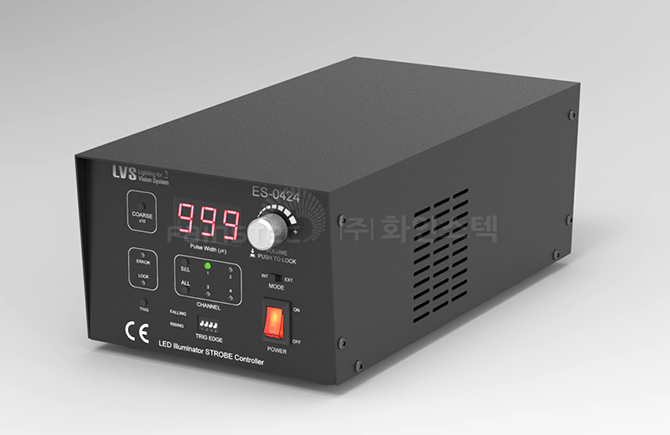

LVS | 스트로브 | es-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 2 | 0-999us | |
|
LVS | 스트로브 | es-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 4 | 0-999us | |
|
LVS | 스트로브 | es-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 8 | 0-999us | |
|

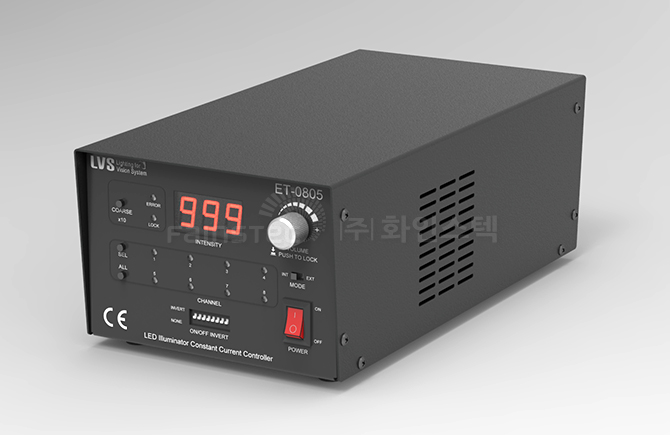

LVS | 정전압 | et-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 2 | 0-999us | |
|
LVS | 정전압 | et-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 4 | 0-999us | |
|
LVS | 정전압 | et-series | AC100V - 240V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 8 | 0-999us | |
|

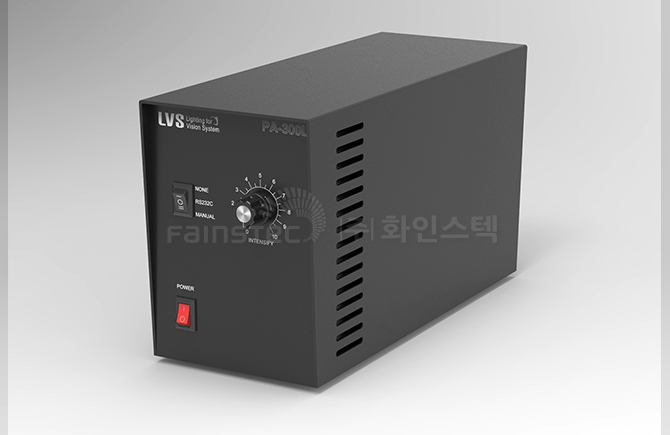

LVS | - | pa-series | 88-264VAC 124-370VDC | - | RS232C | Y | N | N | 0-5V analog control, ON-OFF(PWM) function | 1 | - | |
|
LVS | - | pa-series | 88-264VAC 124-370VDC | - | RS232C | Y | N | N | 0-5V analog control, ON-OFF(PWM) function | 1 | - | |
|
LVS | - | pa-series | 90-264VAC 127-370VDC | - | RS232C | Y | N | N | 0-5V analog control, ON-OFF(PWM) function | 1 | - | |
|

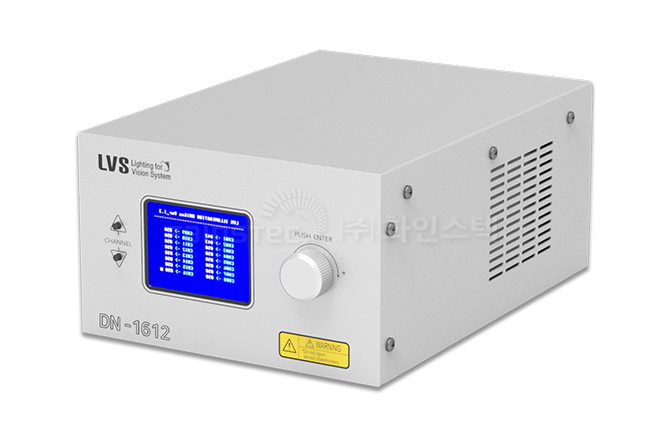

LVS | PWM | dn-series | AC100V - 240V 50/60Hz | - | RS232C, RS485 | Y | N | Y | serial communication dimming (RS 232 C, RS 485) | 4 | 0-255 | |
|
LVS | PWM | dn-series | AC100V - 240V 50/60Hz | - | RS232C, RS485 | Y | N | Y | serial communication dimming (RS 232 C, RS 485) | 10 | 0-255 | |
|
LVS | PWM | dn-series | AC100V - 240V 50/60Hz | - | RS232C, RS485 | Y | N | Y | serial communication dimming (RS 232 C, RS 485) | 16 | 0-255 | |
|
LVS | 스트로브 | ds-series | AC100V - 240V 50/60Hz | - | RS232C, RS485 | Y | N | Y | serial communication dimming (RS 232 C, RS 485) | 16 | 0-999us | |
|

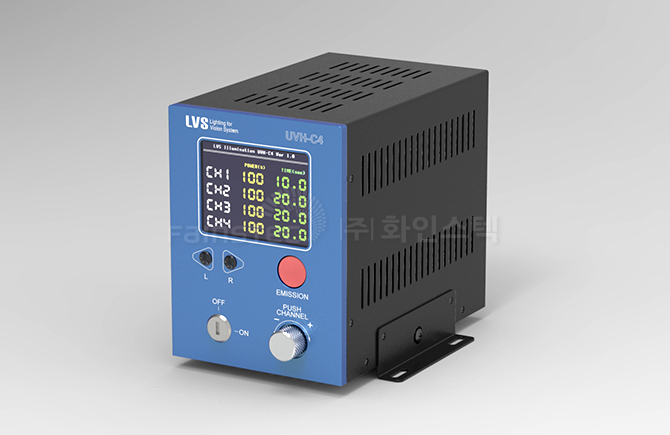

LVS | - | uvh-series | AC100V - 240V 50/60Hz | - | RS232C | Y | N | Y | - | 4 | 0-100 | |
|
LVS | 정접압, 스트로브 | light-source | AC100V - 230V 50/60Hz | - | RS232C | Y | Y | Y | serial communication dimming (RS 232 C), LAN dimming(option) | 4 | 0-256 |
